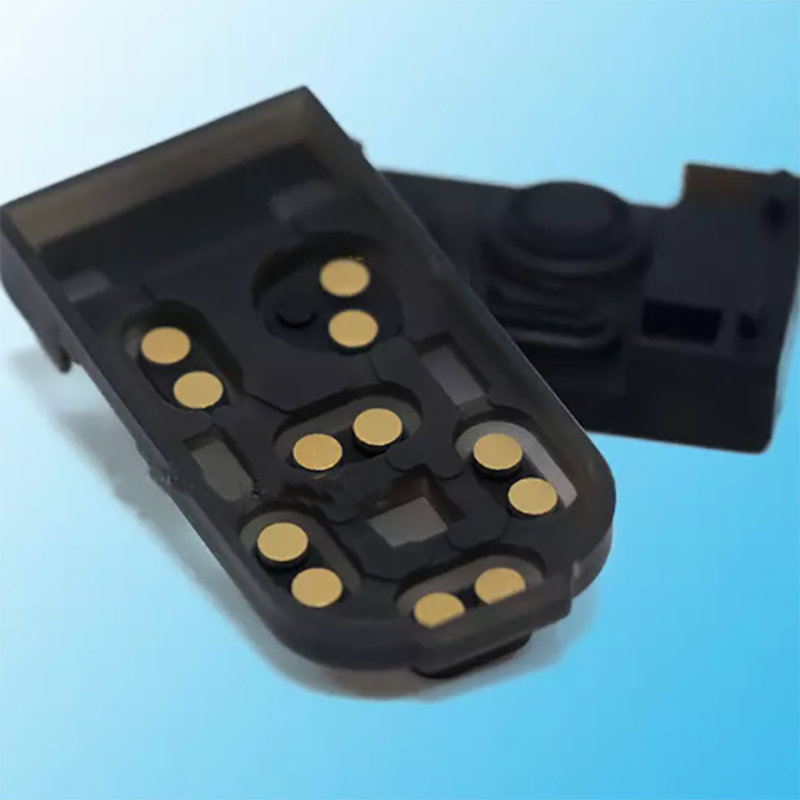

Conductive Silicone Rubber Keypad Metal Gold Pill Buttons

Custom Silicone Rubber Keypads & Keyboard

YJC produces different types of silicone rubber keypads and switches. Rubber Keypads, as a reliable switches components, which is widely used in remote control, medical device, wireless communication device & equitment, electronic calculator etc.

Service Life of Silicone Rubber Button & Silicone Button Keypad & Conductive Pills

1. Load pressure: 20 to 500 G.

2. The contact resistance is less than 150 Ω.

3. Lifetime: 0.5 to 30 million times.

4. Working temperature: – 20 ℃,180 ℃.

5. Storage temperature: from – 30 ℃ to 200 ℃.

6. Contact elasticity: less than 12 million times.

7. Insulation resistance: greater than 10 to the 12th power, and at 500 Ω.

8. Insulation capacity: 25 to 30 kV / mm.

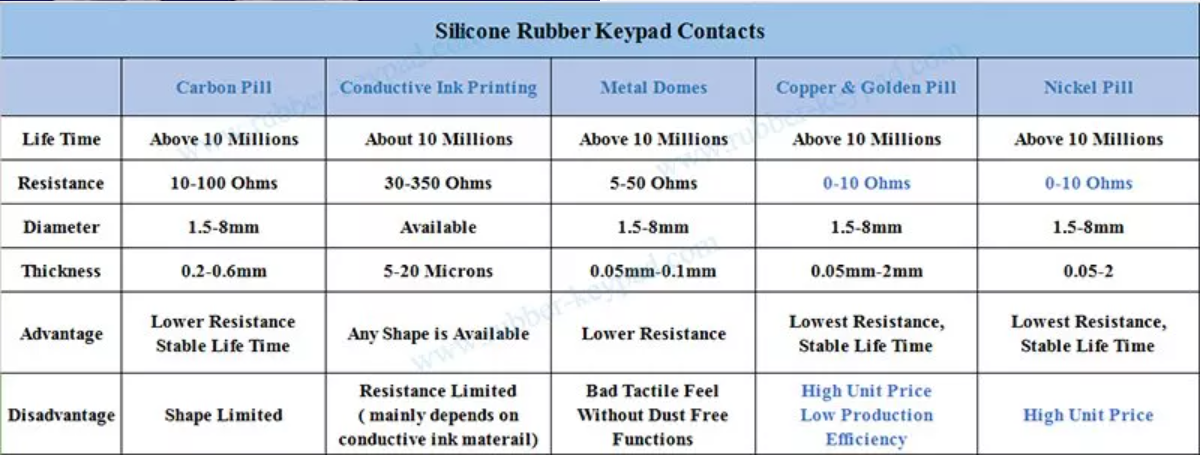

Silicone Rubber Keypads Conductive Materials

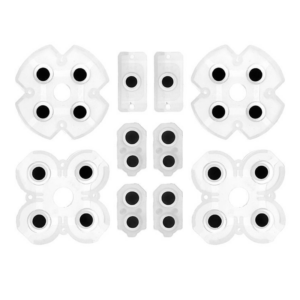

1. Graphite Pads & Black Carbon Pills
2. Electrically Conductive Printing Ink
3. Metal Domes

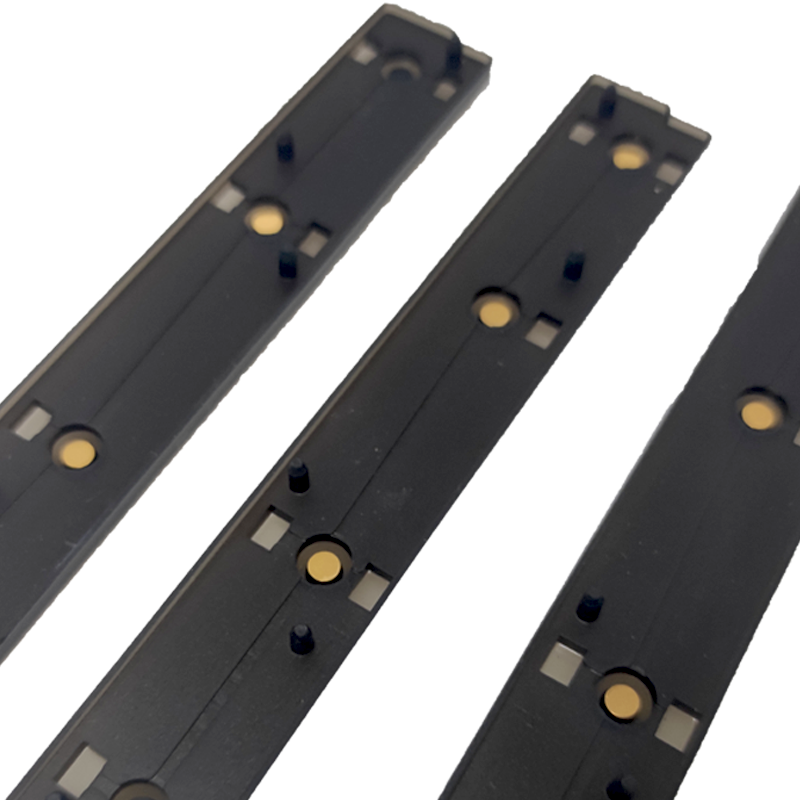

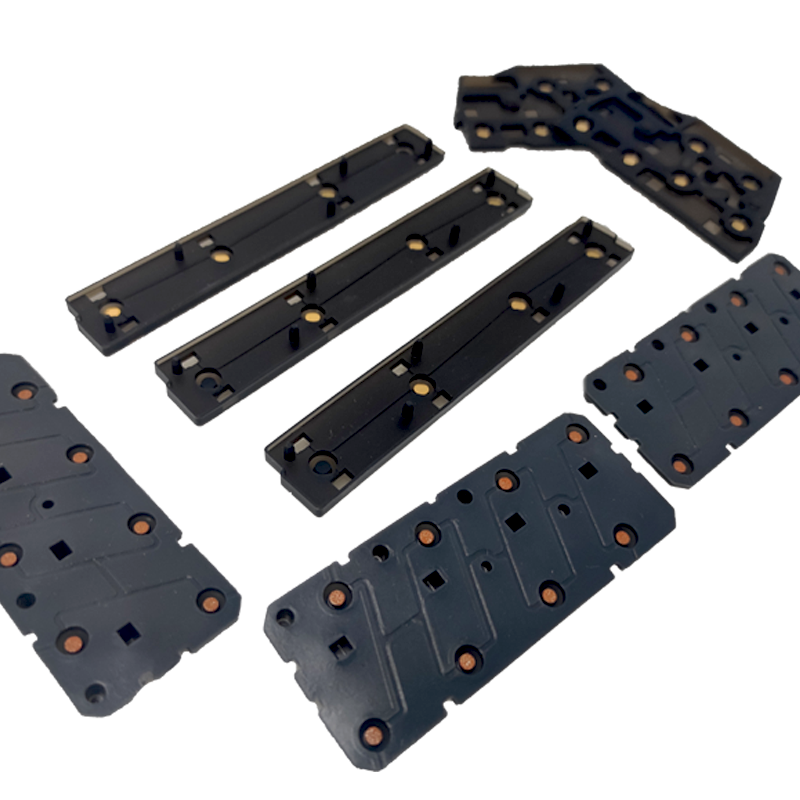

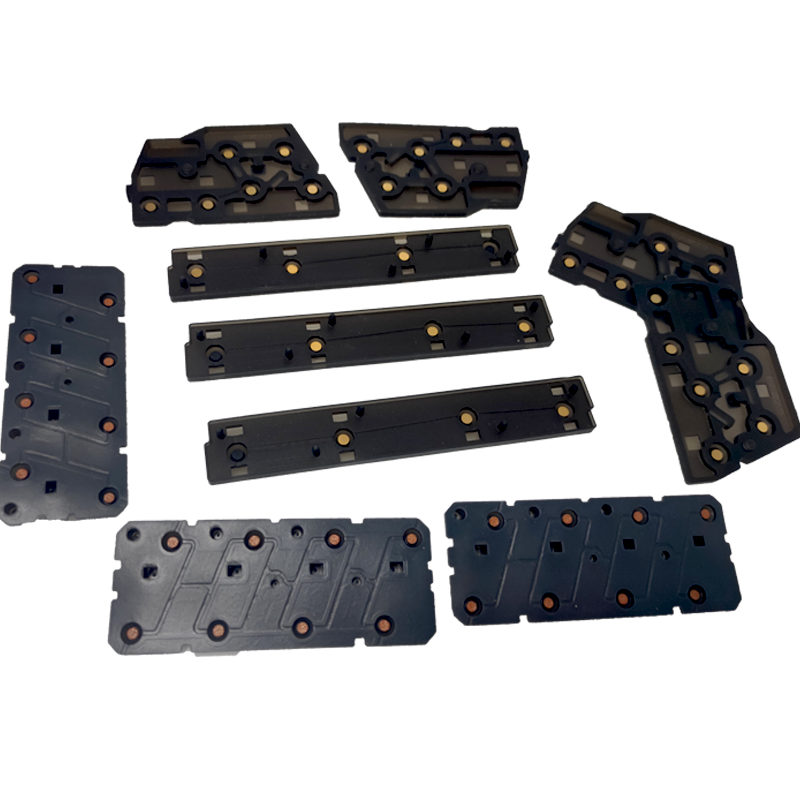

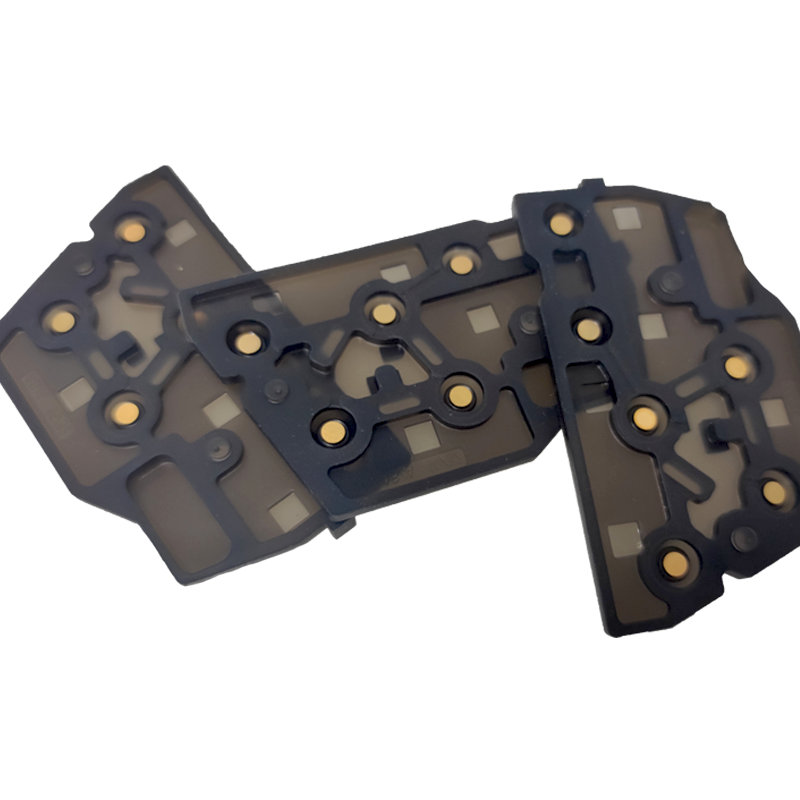

4. Golden Pills & Copper Pads
5. Nickle Pills

Silicone Rubber Keypad Design Structure

1. Silicone Button & Key
2. Silicone Button Pads
3. Button & Key flexible webbing
4. Button & Key Travel
5. Button Conductve: Carbon Pills & Graphite Pads etc.
